TLH-INS-398D-2XJ TLH-INS-W Shipborne Positioning and Orientation Navigation System The TLH-INS-W series ship -borne positioning, heading and navigation system is an inertial navigation unit buit with domestically producedhigh-precision fiber optic gyroscopes/MEMS gyroscopes and quartz flexible acelerometers/MEMS accelerometers. It supports multi-sensor fusionwith vision sensors,magnetometers GNSS and other devices to realize integrated navigation. The system can autonomously, real-timely andcontinuously output high-precision data including position, velocity, heading and attitude angles for carriers, fuly meeting the requirements forhigh-precision positioning and heading determination of various marine carriers. View Performance Parameters

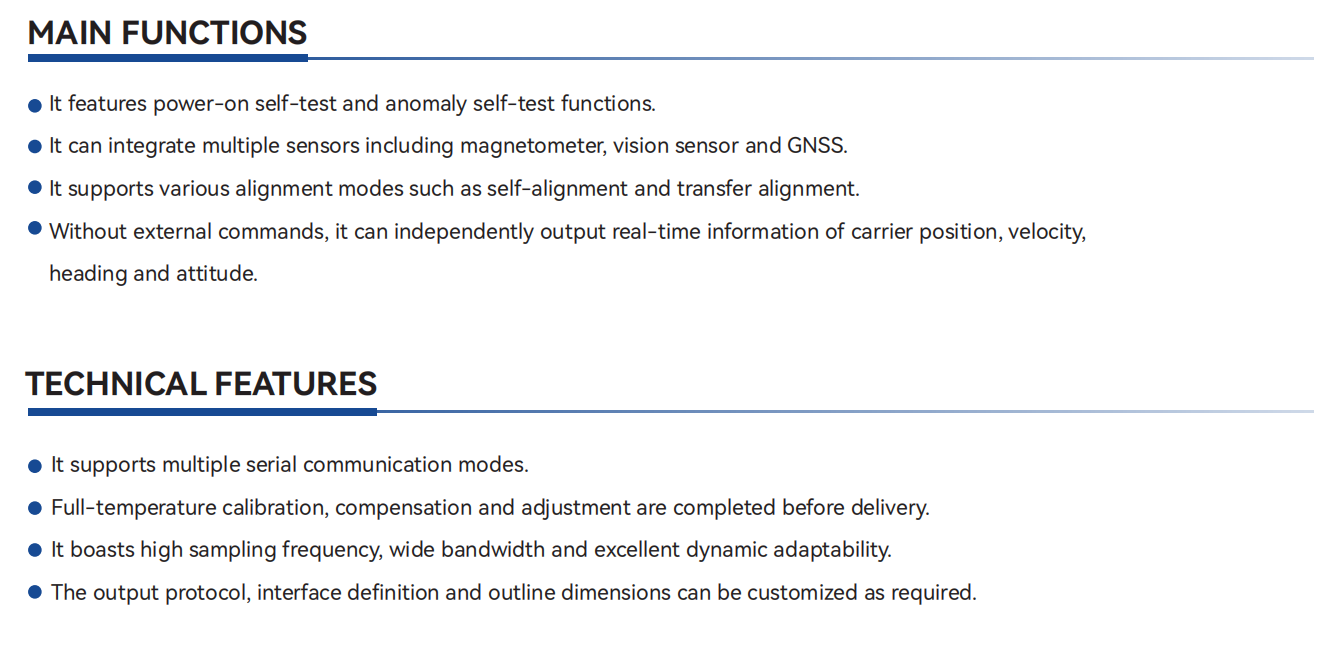

Main Functions

With the function of secondary calibration, strong autonomy and high reliability, suitability for various complex environments.
Main Functions

With fault self-diagnosis function.
Main Functions

With the functions of receiving external control signals, receiving calibration parameters, re-compensating and outputting gyro and accelerometer information.
Main Functions

With the function of parameter calibration and can accept the writing of calibration parameters.
Main Functions

With the function of real-time output of linear acceleration along three axial directions (X,Y,Z) and angular velocity around the three axes.

Technical features High output frequency, stable and reliable data High circuit integration, navigation solution, plus table IF conversion and other circuit integration design. Integrated design, compact structure, built-in GNSS module and height meter Strong autonomy, autonomous navigation and positioning based on other sensors such as on-board odometers Interface rich, adaptable, with dual CAN, RS422, RS232, synchronous second punch and other types of interface, can be customized according to user needs

Performance Parameters
