TLH-F50-TLH-F Fiber Optic Gyroscope Teaching & Demonstration System-I-NAV - lead the intelligent world with the ultimate high-precision positioning

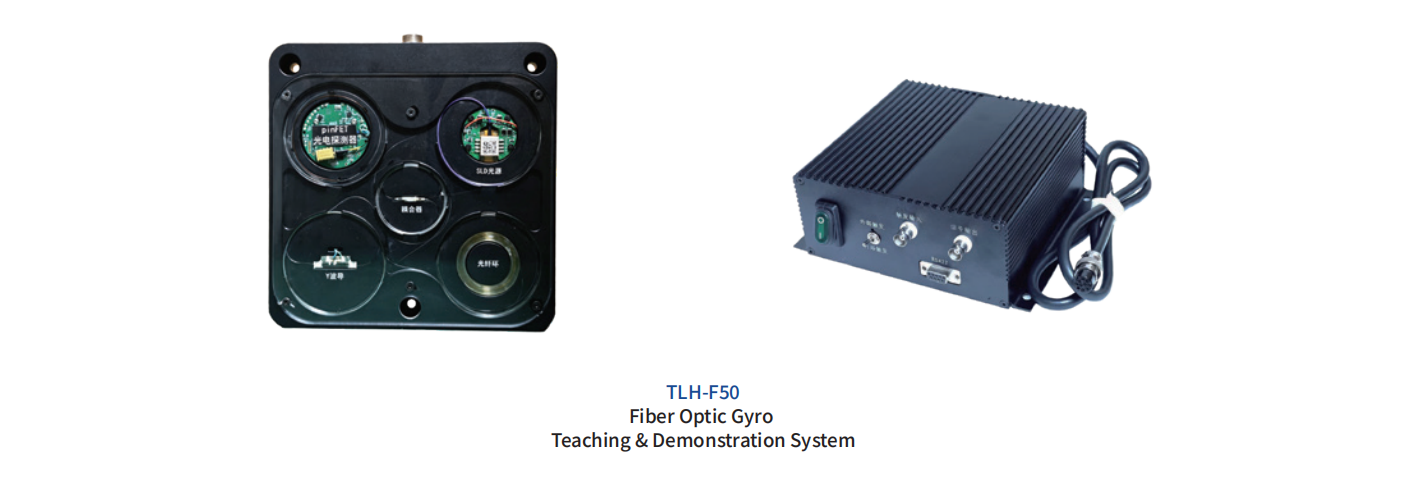

TLH-F50 TLH-F Fiber Optic Gyroscope Teaching & Demonstration System This fiber optic gyroscope teaching and demonstration system features a fuly transparent structure with all core optoelectronic componentsdearly visible. I supports on-ine switching between internal and mut -waveform externaltriggers, and allows dynamic adustment of half wavevoltage, open/dosed loop modes, sampling parameters and baud rate. Equipped wth an inteligent upper computer, it enables real-time parameterconfiguration and data monitoring, sering as a flexible and intuitive platform for FOG principle teaching and experimental research. View Performance Parameters

Main Functions

With the function of secondary calibration, strong autonomy and high reliability, suitability for various complex environments.
Main Functions

With fault self-diagnosis function.
Main Functions

With the functions of receiving external control signals, receiving calibration parameters, re-compensating and outputting gyro and accelerometer information.
Main Functions

With the function of parameter calibration and can accept the writing of calibration parameters.
Main Functions

With the function of real-time output of linear acceleration along three axial directions (X,Y,Z) and angular velocity around the three axes.

Technical features High output frequency, stable and reliable data High circuit integration, navigation solution, plus table IF conversion and other circuit integration design. Integrated design, compact structure, built-in GNSS module and height meter Strong autonomy, autonomous navigation and positioning based on other sensors such as on-board odometers Interface rich, adaptable, with dual CAN, RS422, RS232, synchronous second punch and other types of interface, can be customized according to user needs

Performance Parameters
